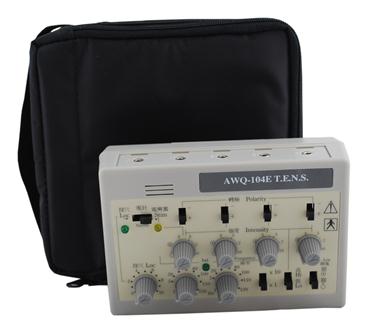

El-akupunktur TENS Stimulator

El-akupunktur- och TENS-stimulator, tillverkad i Kina.

Fyra stycken kablar med två stycken krokodilklämmor på varje, för att fästa på nålarna vid, ingår. 9 v batteri ingår inte.

PRODUKTINFORMATION FRÅN FABRIKEN

For point location and stimulation with light and sound.

With 4 outputs and large LCD digital meter which displays both frequency and point location.

4 independently controlled output channels which provide stimulation to 8 needles.

New integrated circuitry assures no interference or crossover.

Three adjustable pulse modes are also offered: continuous, intermittent (discontinuous), and dense-disperse.
Output channels 5 (1 hand probe, 4 intensity channels)
Frequency meter LCD, 0.5" x 0.9"
X1 1 to 100 Hz
X10 10 to 999 Hz
Frequency light green LED light
Volts & current
Low 0 to 9 volts, 0 to 18 mA
High 0 to 20 volts, 0 to 40 mA
Pulse width X1 320 microseconds (µS) X10 32 microseconds (µS)
Pulse shape asymmetric biphasic square wave with negative spike
Pulse modes continuous, intermittent (discontinuous), or dense-disperse (rate modulation)
Skin impedance monitoring meter displays value 1 to 100 or 150, green LED light, and sound
Polarity reversal + / - switches for each channel
Power source one 9 volt battery Low power indication yellow LED light.
